Intoduction
Gate drivers play an important role in power conversion systems, receiving low-power control signals and amplifying them into high-current signals that drive the gates of high-power transistors (e.g. IGBTs, MOSFETs). This ensures efficient operation of switching elements, minimizes power loss, and improves switching speed. Gate drivers are used in various industrial fields such as power supplies, motor drives, and solar inverters, and in particular, they provide isolation between high-voltage circuits and low-voltage control circuits to enhance the stability and reliability of the system.

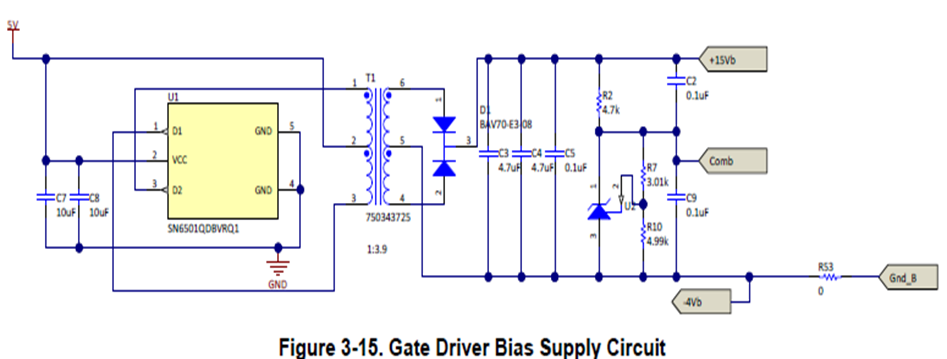

Gate Bias Supply Circuit

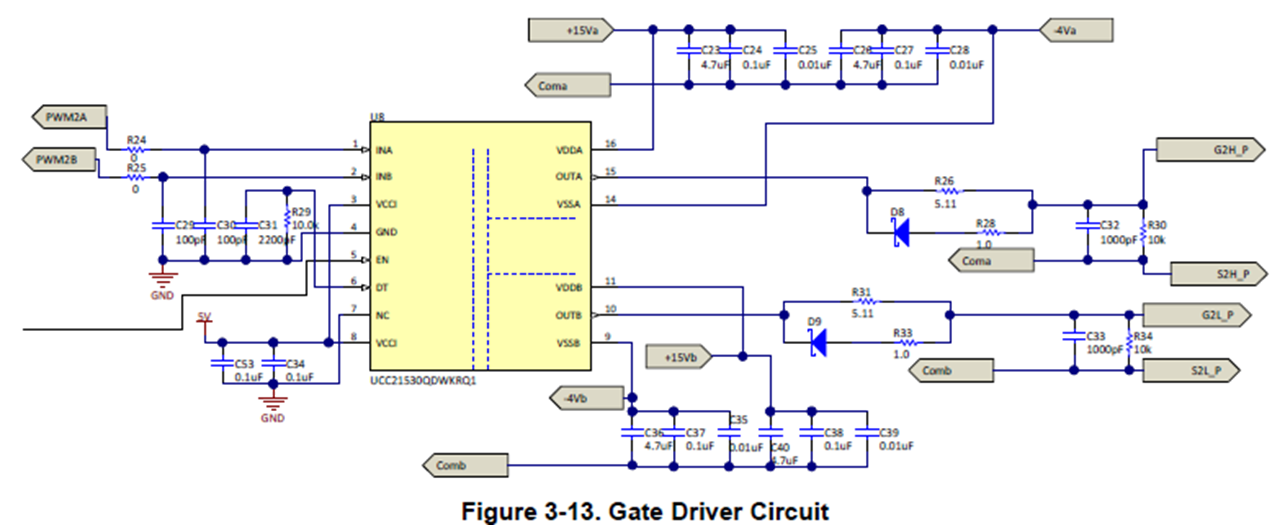

Gate Driver Circuit

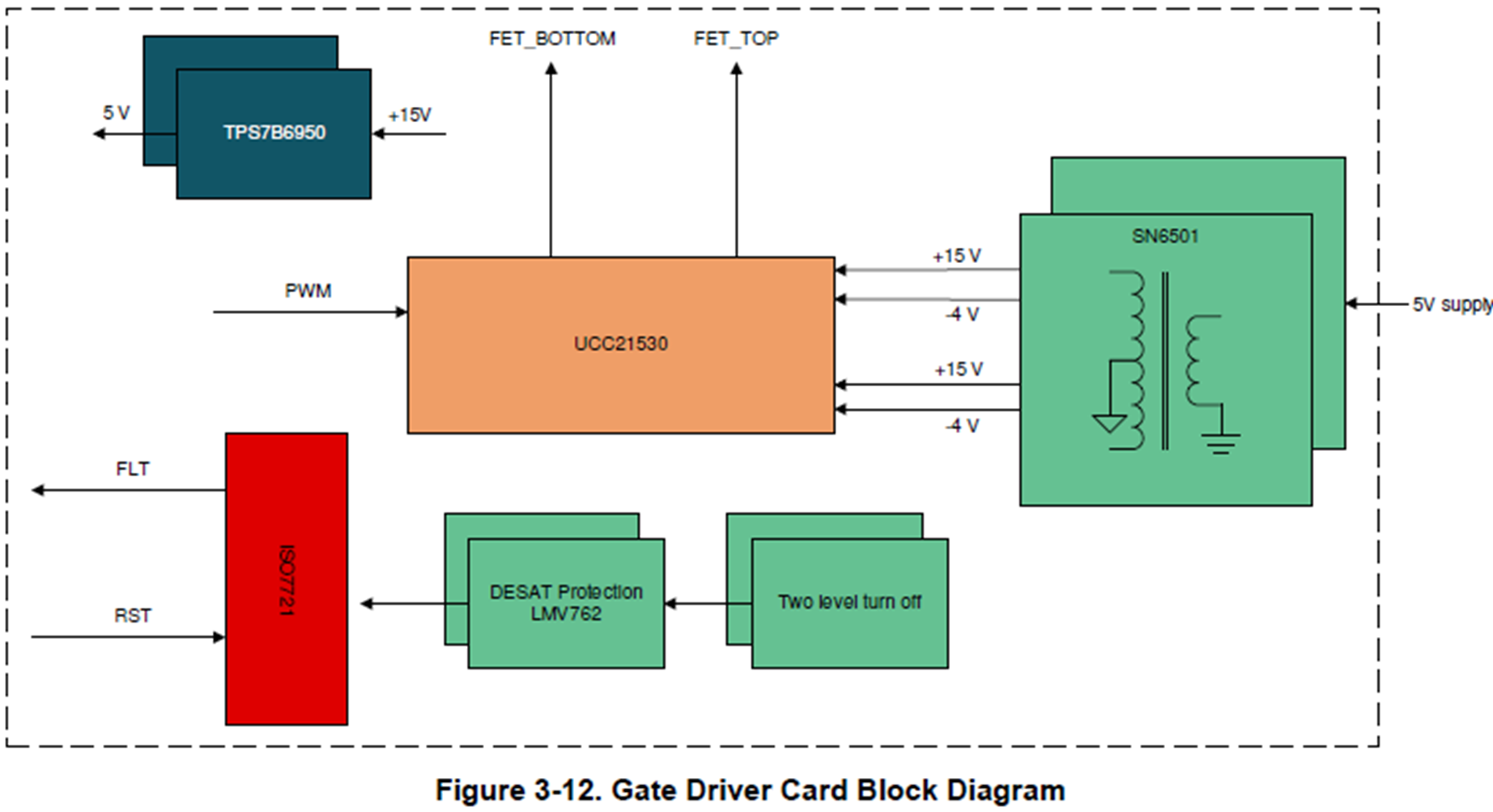

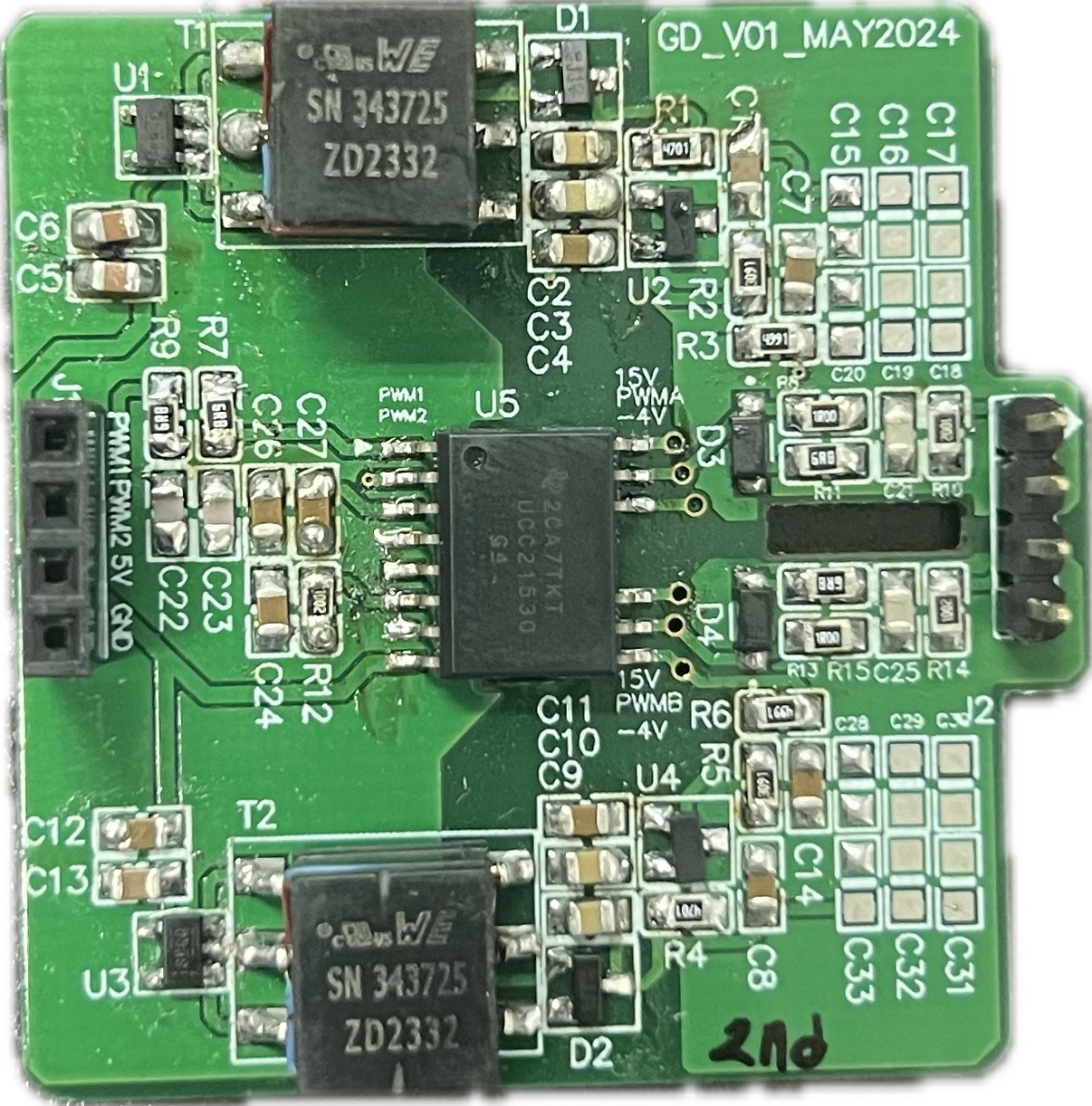

Gate Driver Module HW

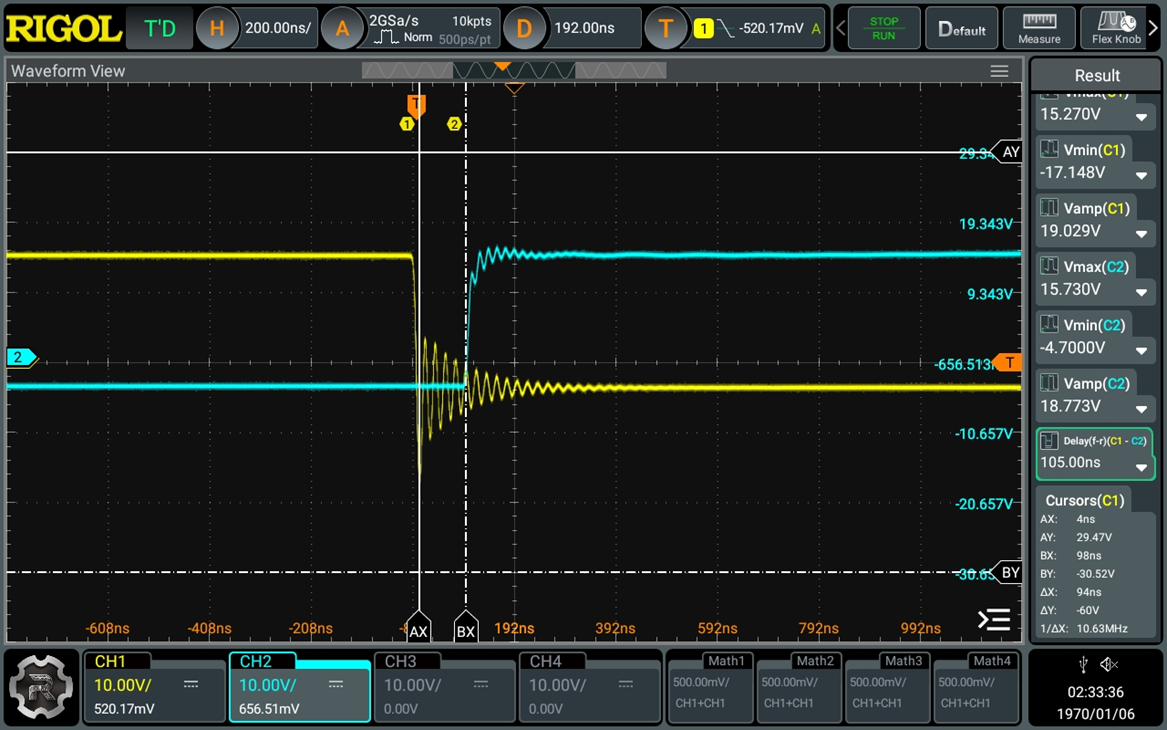

HW test
Reference
[Bidirectional, Dual Active Bridge Reference Design for], Texas Instruments
