Power Electronics

Power Loss Calculation

by givenhow 2025. 10. 19.

Sync Buck Converter with Paralling device

목적:  개별 소자 당 전력 손실 해석

Power loss

1) Switching loss

: Hard switching 동작에 따라 매 주기 마다 스위칭 과도기간동안 손실 발생

2) Conduction loss

: 전력 반도체의 on-resistance에 따라 I^2 * R_on의 손실 발생



계산 방법

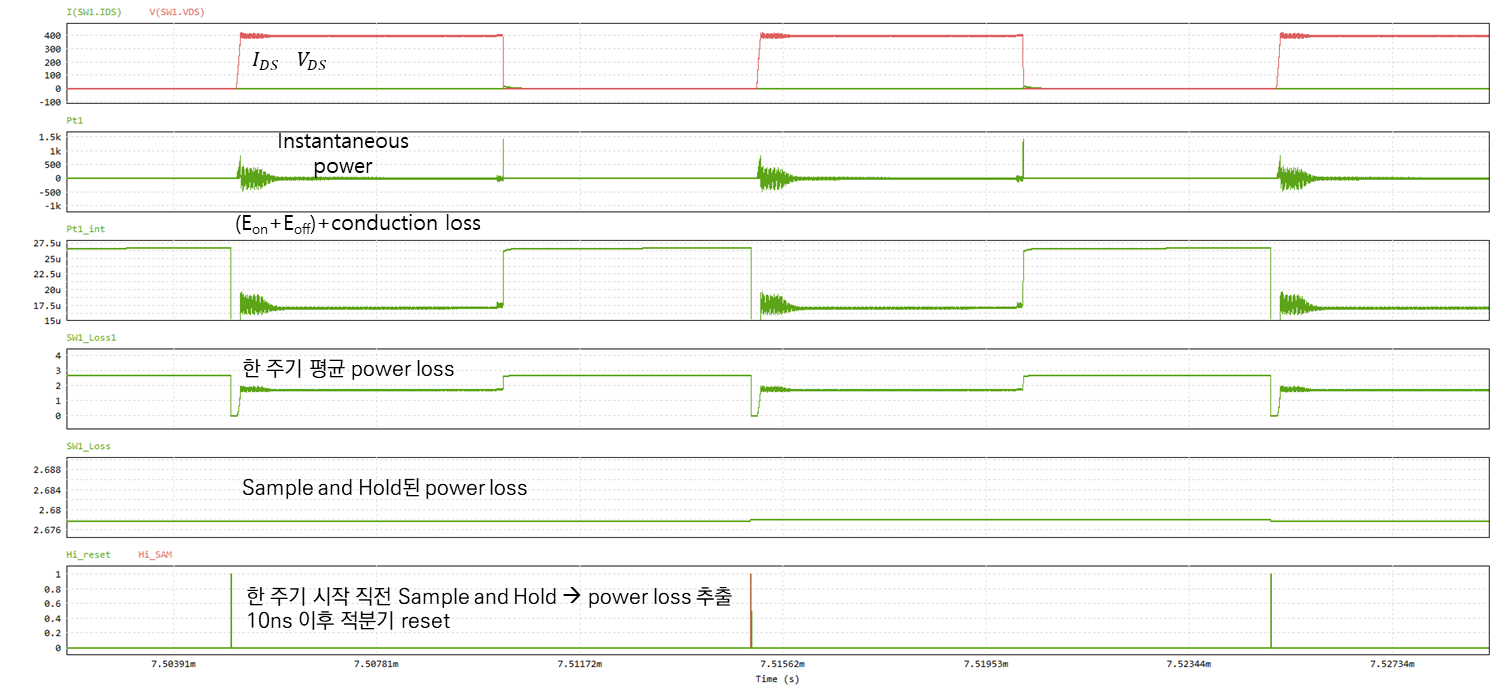

한 주기에 대해 순시전력을 평균값을 구함





1) Power stage

6-paralling SiC sync. Buck converter

: Parasitic inductance 반영(Ansys Q3D, EmCos studio)

2) Gate driver

D=0.5, fsw = 100[kHz], dead time = 200[ns]

3) Calculator

순시전력: 개별 die의 Vgs, id를 센싱 받아 p(t)=Vgs & id 계산

4) Reset Pulse

한 주기 시작 직전 적분기 reset

5) SAM(Sample and Hold)

Reset 직전 적분기 값 유지



Simulation condition: Loss (Vin : 400V / Vout : 200V / fsw : 100kHz / Pout : 2kW)





시뮬레이션 회로

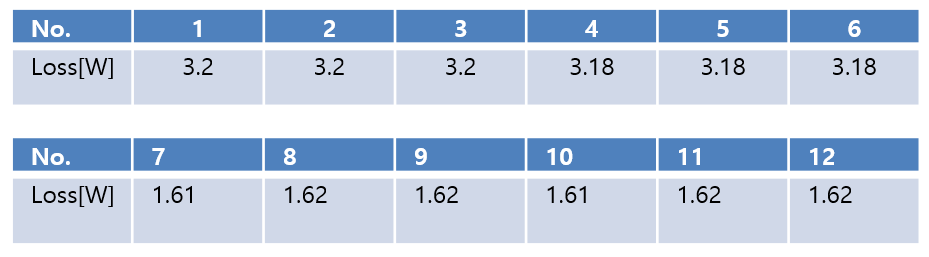

개별 die당 한 주기 평균 손실
